378-9517 SWING REDUCTION GEAR for Cat320D2 323
| उत्पत्ति के प्लेस | चाइना में बना |
|---|---|
| ब्रांड नाम | TCY |
| मॉडल संख्या | CAT323D2 एल 320D2 |
| न्यूनतम आदेश मात्रा | 1 |
| पैकेजिंग विवरण | लकड़ी का केस |
| प्रसव के समय | 2-3/बातचीत |
| भुगतान शर्तें | टी/टी, अलीपे, वीचैट...आदि, वेस्टर्न यूनियन, मनीग्राम, डी/पी |
उत्पाद विवरण
| भाग सं. | 378-9517 3789517 488-3075 4883075 | प्रोडक्ट का नाम | घुमाओ कमी गियर |
|---|---|---|---|
| नमूना | कैट 323डी2 एल 320डी2 | गरारी शाफ्ट | 14टी/34टी |
| MOQ | 1 टुकड़ा | वज़न | 320 किग्रा |
| लकड़ी का केस | 55*55*60 | स्थिति | नया |
| ब्रांड नाम | TCY |
उत्पाद विवरण
378-9517 3789517 488-3075 4883075 SWING REDUCTION GEAR for CAT320 323F OEM 320F L 320D L 320E L 320D2 GC 323 323E LN 320D2 FM 320D 320E 320D2 L 320E LRR 323F L 323E L 538 323D2 L 320D2 323F LN 320D3 323D2 323F 320 GC 323E SA 320E LN 320E RR

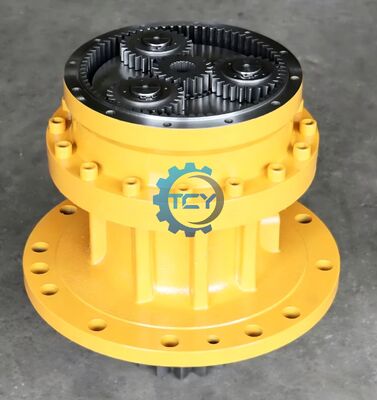

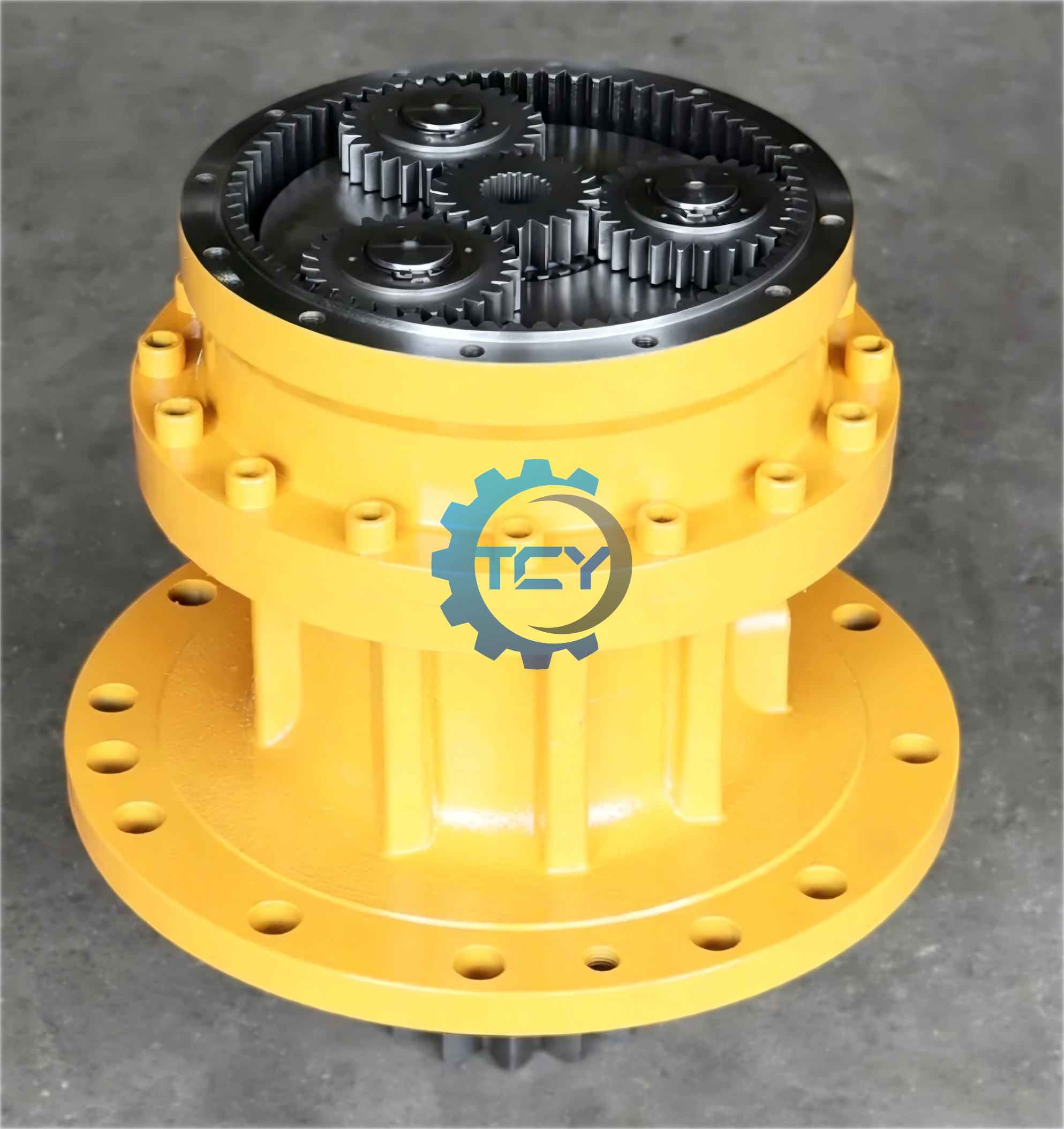

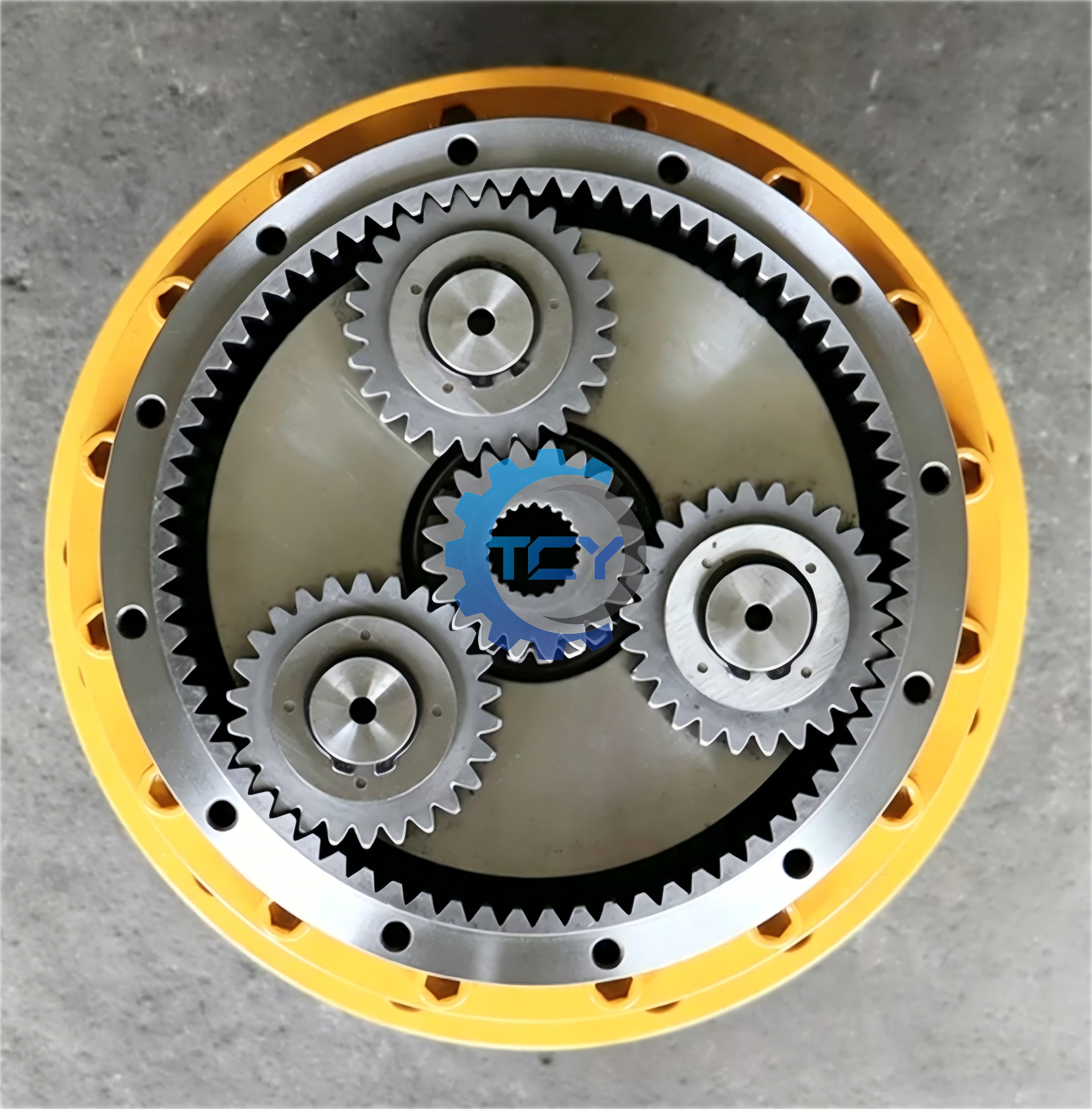

This excavator swing reduction gearbox adopts high-strength planetary gear structure.
It features strong impact resistance, stable power transmission and excellent durability. Reinforced housing and multi-layer sealing effectively prevent dust and water intrusion.
Precision-processed gears deliver high efficiency, smooth slewing performance and extended service life, ideal for long-term heavy-duty construction scenarios.
Perfect Fit & Easy Maintenance: Direct interchangeability with major OEM models (Komatsu, Hitachi, Cat, Doosan, Hyundai, Sany, etc.).
Wide Application: Ideal for excavators, loaders, cranes, and rotary drilling rigs—performing reliably in construction, mining, quarrying, and infrastructure projects.
| Model: CAT 323D2 L 320D2 | Part name:Swing Reduction Gear |
| Part NO.:378-9517 3789517 488-3075 4883075 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:CAT Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
| NO. | PART NO. | QTY | PART NAME | ||
| 1 | 6V-7238 | [1] | VALVE-SHUTOFF | ||
| 2 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | ||
| 3 | 148-4636 | [1] | SHAFT-PINION | ||
| 4 | 148-4640 | [1] | RING-RETAINING | ||
| 5 | 171-9383 | [1] | SPACER | ||
| 6 | 199-4561 | [2] | SEAL-LIP TYPE | ||
| 7 | 227-6228 | [1] | CAGE | ||
| 8 | 367-8364 | [1] | GEAR-SUN (20-TEETH) | ||
| 9 | 367-8365 | [3] | GEAR-PLANETARY (26-TEETH) | ||
| 10 | 367-8367 | [2] | RING-RETAINING | ||
| 11 | 367-8368 | [1] | GEAR-SUN (23-TEETH) | ||
| 12 | 367-8369 | [3] | GEAR-PLANETARY (25-TEETH) | ||
| 13 | 378-9513 | [3] | SHAFT | ||
| 14 | 378-9514 | [1] | CARRIER-PLANETARY | ||
| 15 | 378-9515 | [1] | GEAR-RING (73-TEETH) | ||
| 16 | 378-9516 | [1] | HOUSING | ||
| 17 | 378-9609 | [1] | CARRIER AS | ||
| 18 | 451-2182 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | ||
| 19 | 453-3447 M | [6] | BOLT (M12X1.75X40-MM) | ||
| 20 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | ||
| 21 | 509-6676 | [3] | PIN-SPRING | ||
| 22 | 095-1022 | [1] | BEARING-ROLLER | ||
| 23 | 148-4642 | [1] | SEAL-O-RING | ||
| 24 | 148-4643 | [1] | BEARING | ||
| 25 | 296-6268 | [6] | BEARING AS-ROLLER | ||
| 26 | 346-5215 | [3] | BEARING AS | ||
| 27 | 3K-0360 | [1] | SEAL-O-RING | ||
| 28 | 7I-7623 | [1] | SPACER (52X69.5X6-MM THK) | ||
| 29 | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) | ||
| 30 | 8T-0348 M | [16] | BOLT-SOCKET HEAD (M16X2X50-MM) | ||
| 31 | 8T-4240 | [3] | RING-RETAINING | ||
| 32 | 9X-8268 | [16] | WASHER (17.5X30X3.5-MM THK) | ||
